Sun Speed
Honda-Elise Electrical
Interface

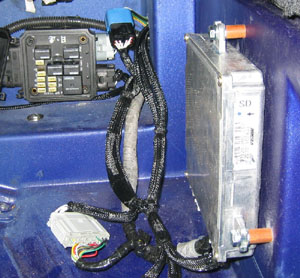

Sun Speed designed and produces an
interface wiring harness / loom and Vehicle Electrical Control (VEC)
module to connect the Elise chassis
wiring to the Honda power train wiring.
Plug and run. Complete connection is accomplished in minutes.
Please view
our High Performance Electronics Options
- For all Sun Speed
wiring the speedometer signal is picked up from the
Honda VSS not the Elise wheel speed sensor.
- included: micro controller for
speedometer calibration and signal
conditioning.
- SunSpeed wiring harness / loom are
built to aerospace standards, by aerospace technicians, with Teflon coated solid wires
and, "ruggedized" for positive, durable connections in race conditions.
- All connectors Elise and Honda
are size and type matched,
- connectors are color coded and
labeled for easy connection. Schematic diagrams are available.
- Communication with the engine
management (ecu) via included standard Data Link Connection (DLC) / On Board
Diagnostic (OBD II)
connector
- Series 1 and 2 Elise speedometer signal
from the Honda VSS
- Exige and 340 R wiring interface
"flying leads" for custom installation
- Sun Speed wiring interface will work
with Stack, AIM, AEM, MOTEC, Hondata, etc.
- original Elise inertia switch is
optional
- Honda power train and ecu include
original fuel shut off
Recommended, strongly that the installer obtain the Honda workshop manual and
ETM / Electrica Troubleshooting Manual. An excellent source for these manuals
in the US is: Helm Inc.
Note - It is necessary to use engine computers without immobilizer.
Sun Speed wiring:
- main Honda 2 Elise wiring harness (loom).
Price $625.00 USD
- power connection harness (loom). Price
$25.00 USD

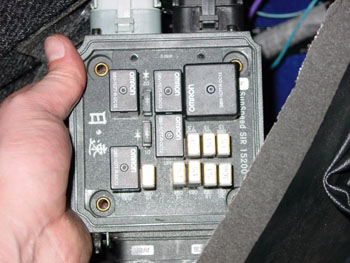

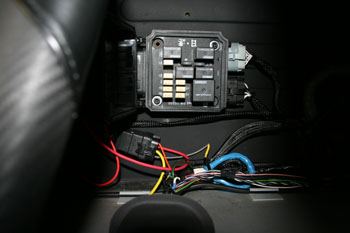

- Vehicle Electrical Control box with circuit breakers and relays for the
Honda engine replaces Elise power distribution panel. Price
$300.00 USD
- Sun Speed wiring interface is available
for other engine swaps e.g. Ariel Atom, Lotus 7, Honda K20 into anything
- instrument / display interface for non-original instruments
- Inquire
- Optional custom harnesses with "flying
lead" for racing instruments with wire functions labeled - POA
- Speedometer signal micro controller
Price $125.00
